Diamond and CBN Wheels for Round Tool Manufacture / Gashing Wheels

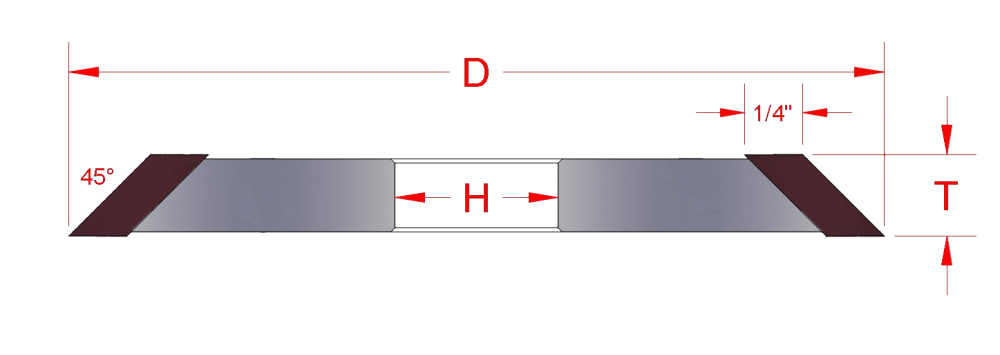

Wheel Type 1v1 at 45 Degrees
| Order Number | Wheel Diameter 'D' | Abrasive Thickness 'T' | Abrasive Depth | Angle "A" |
|---|---|---|---|---|
| GD42545 | 4 | 1/4 | 1/4 | 45 |
| GD43745 | 4 | 3/8 | 1/4 | 45 |
| GD52545 | 5 | 1/4 | 1/4 | 45 |
| GD53745 | 5 | 3/8 | 1/4 | 45 |
| GD63745 | 6 | 3/8 | 1/4 | 45 |
